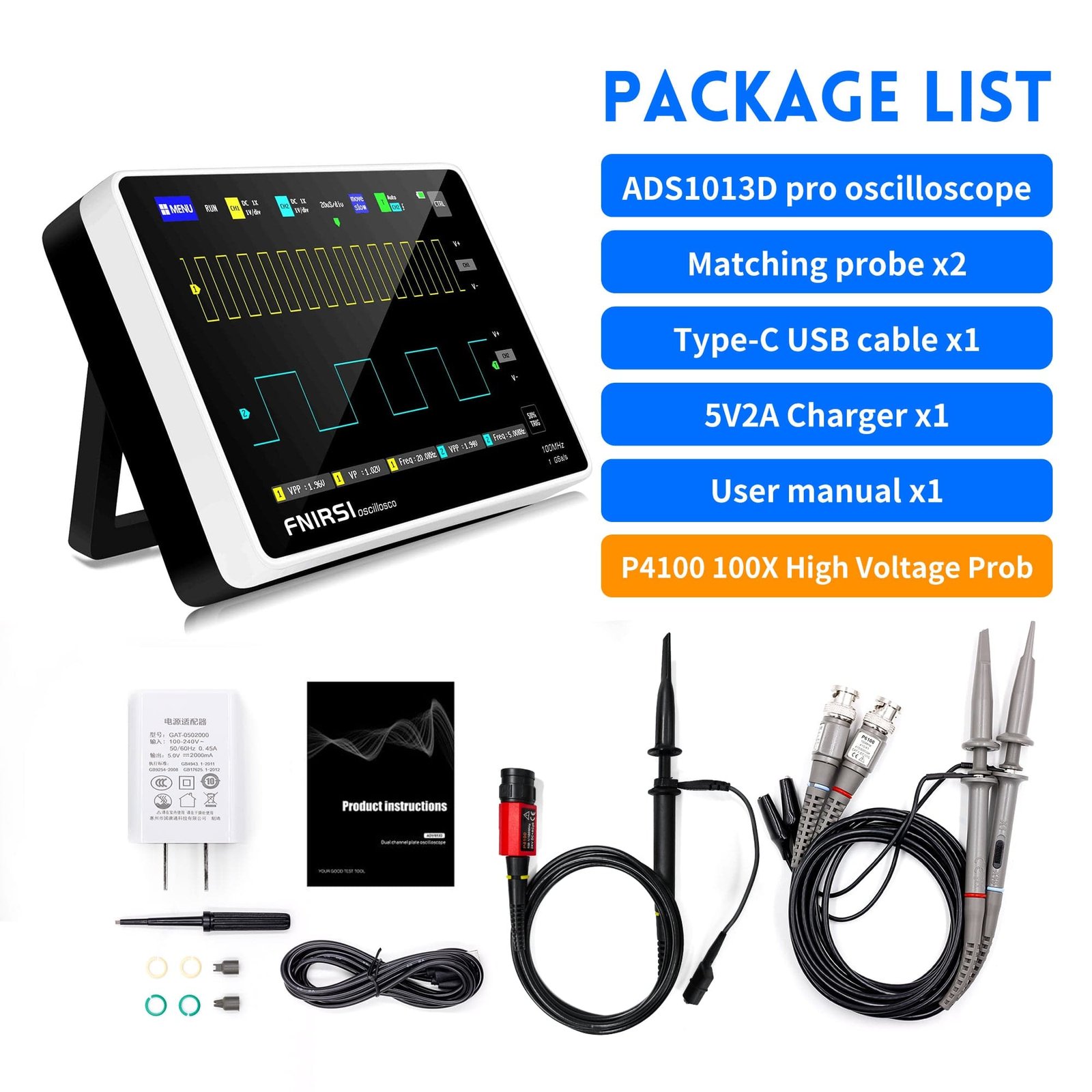

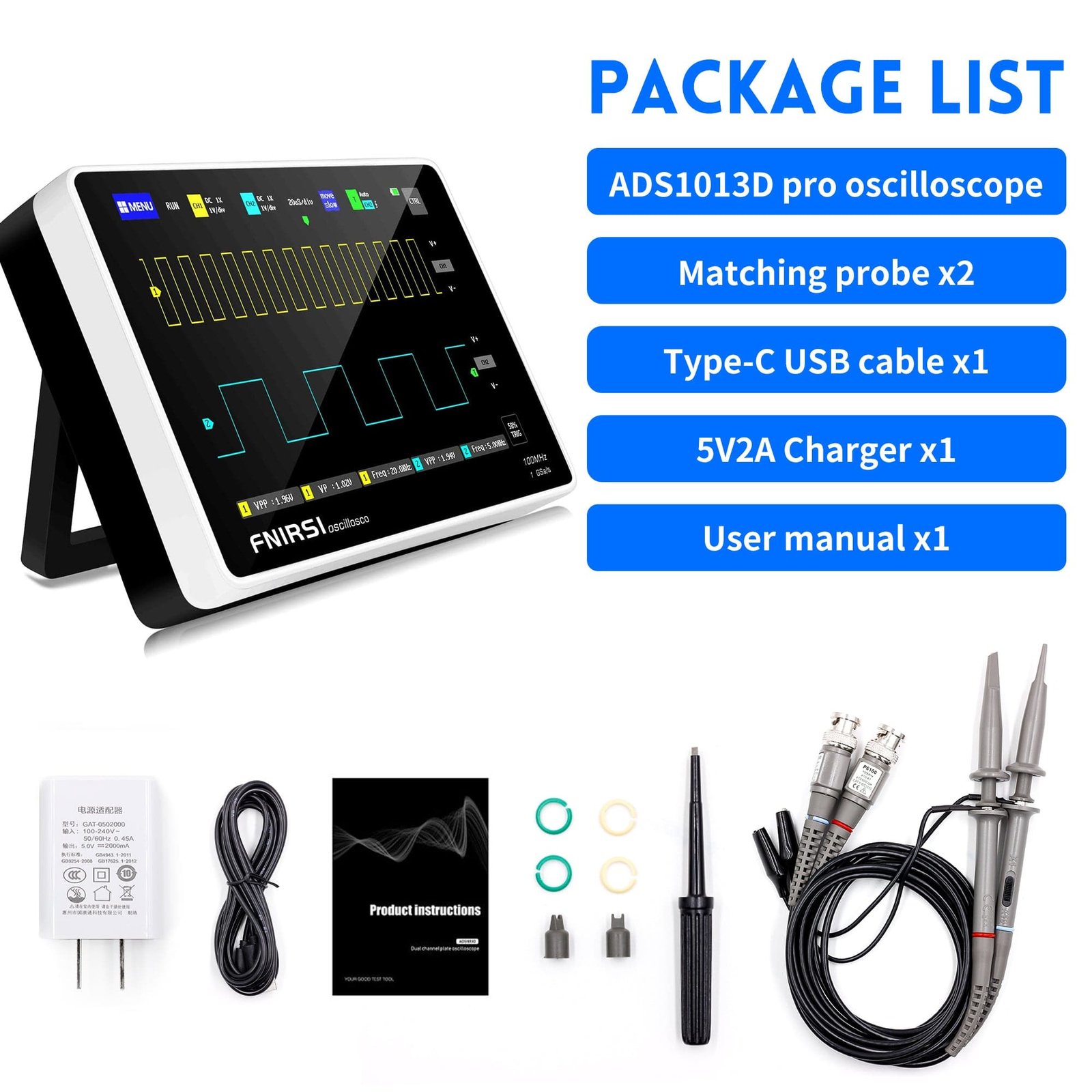

The FNIRSI-1013D is a dual-channel oscilloscope designed for R&D and maintenance, offering a 1GSa/s real-time sampling rate and 100MHz bandwidth per channel. It supports various trigger modes (single/normal/auto) and can handle up to 400V with built-in high-voltage protection. The 7-inch 800×480 touchscreen provides easy control with one-key AUTO function for quick waveform display.
It includes convenient features like cursor measurements, peak detection, and built-in 1GB storage for up to 1000 screenshots and waveforms. The oscilloscope also supports USB connectivity for data sharing, and its 6000mAh battery lasts up to 4 hours on a single charge, usable even while charging.
Features
- 2 Channels
- Portable Handheld Tablet Oscilloscope
- 1GSa/s Sampling Rate (1X=5MHz,10X=100MHz)
- 100MHZ * 2analog bandwidth

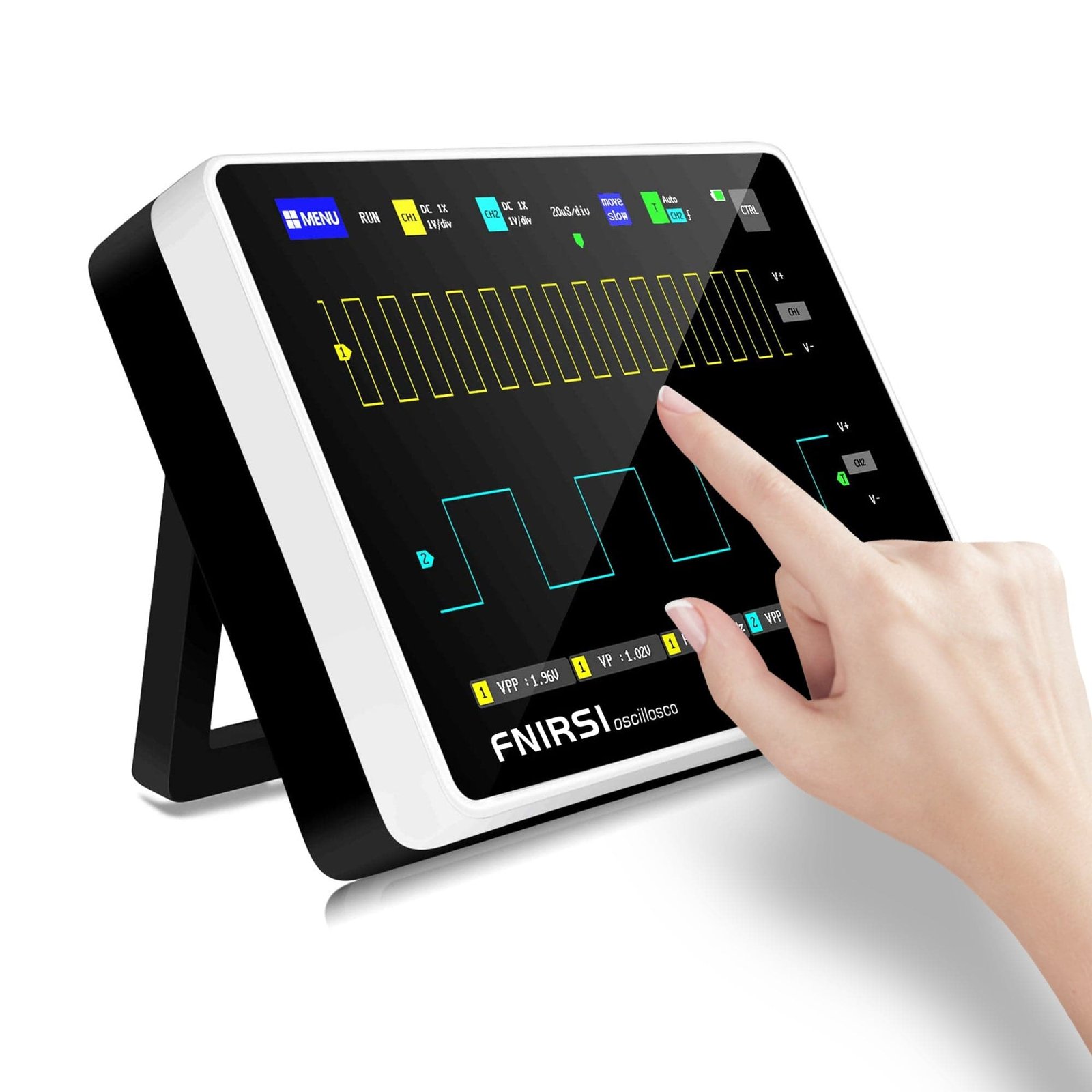

- 7″ TFT LCD Touch Screen

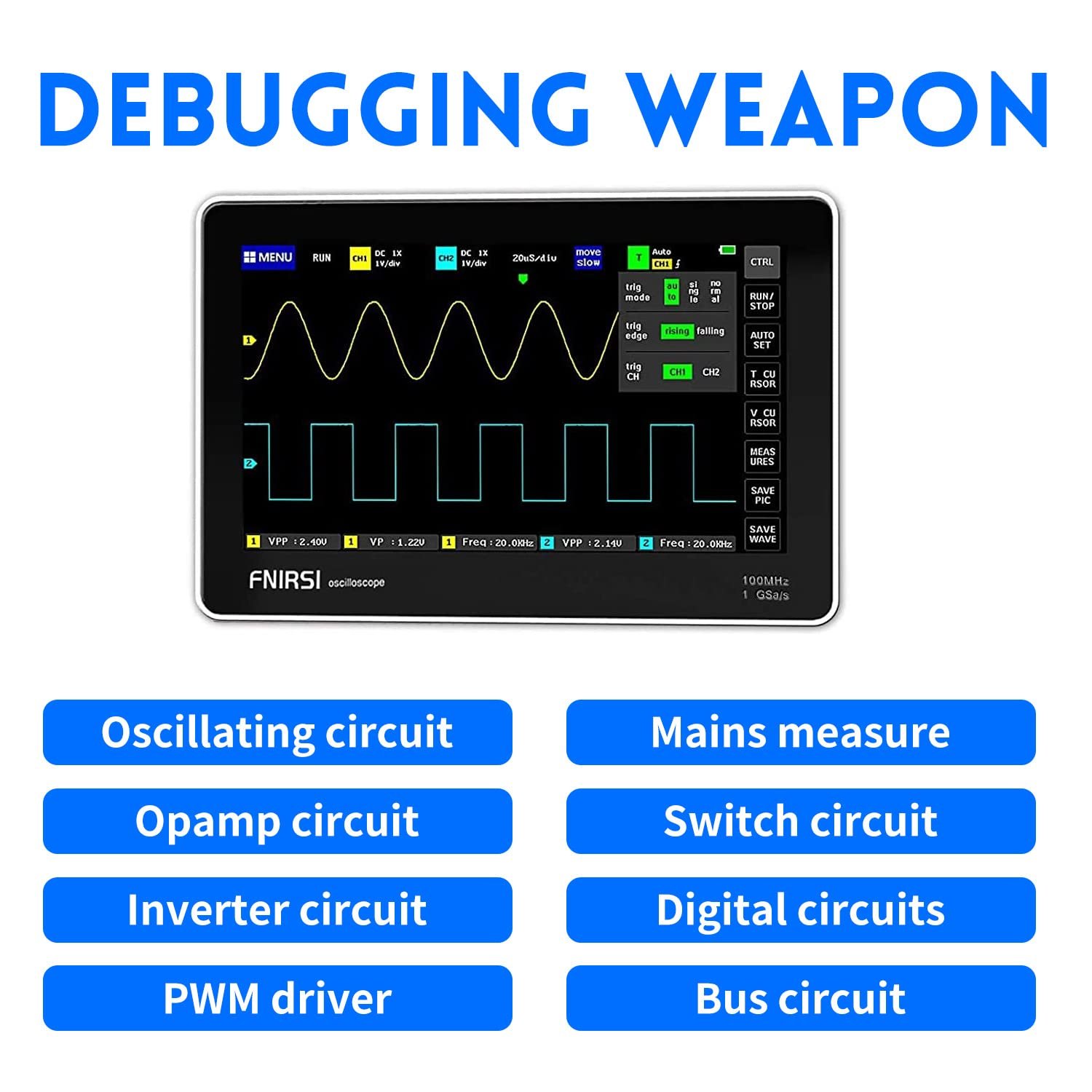

- Complete trigger function (single/normal/automatic).
- One-button AUTO and adaptive trigger (25%, 50%, 75%).
- Versatile usage for both periodic analog and aperiodic digital signals.
- high-voltage protection module.
- 1X can measure 0~40V, 10X can measure 0~400V,100X can measure 0~4000V

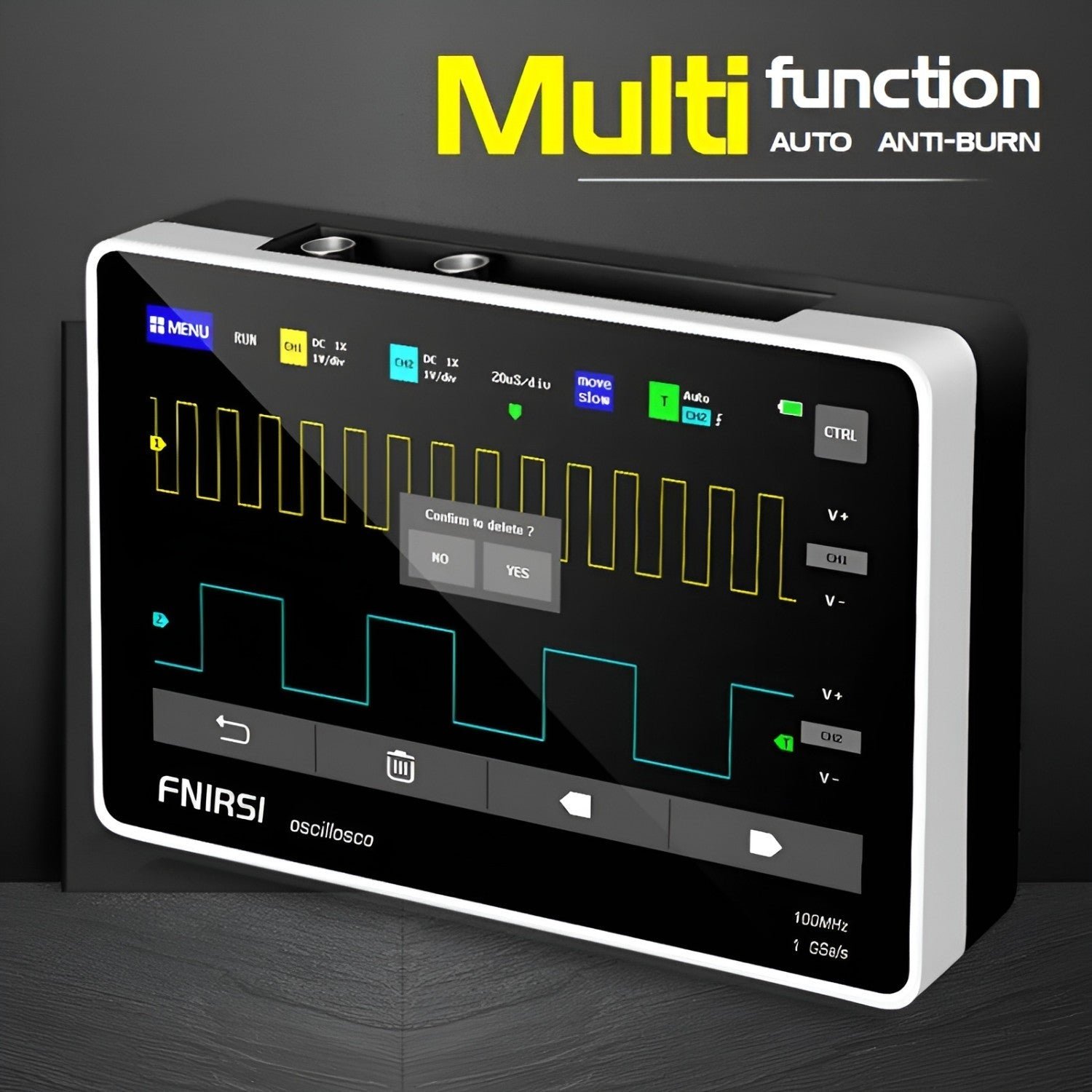

- Powerful Waveform Picture Manager.
- One-key Screenshot and Saving.
- Cursor measurement function.
- Powerful Waveform Picture Manager.
- Lissajous Graphic Display & FFT Viewing.
- USB Picture Export
- Ideal for both periodic analog and aperiodic digital signals.
- 6000mah battery, continuous usage for 4 hours
- Targeting the maintenance industry and the research and development industry.
Specifications
Brand
FNIRSI
Model
1013D
Channels
2
Display

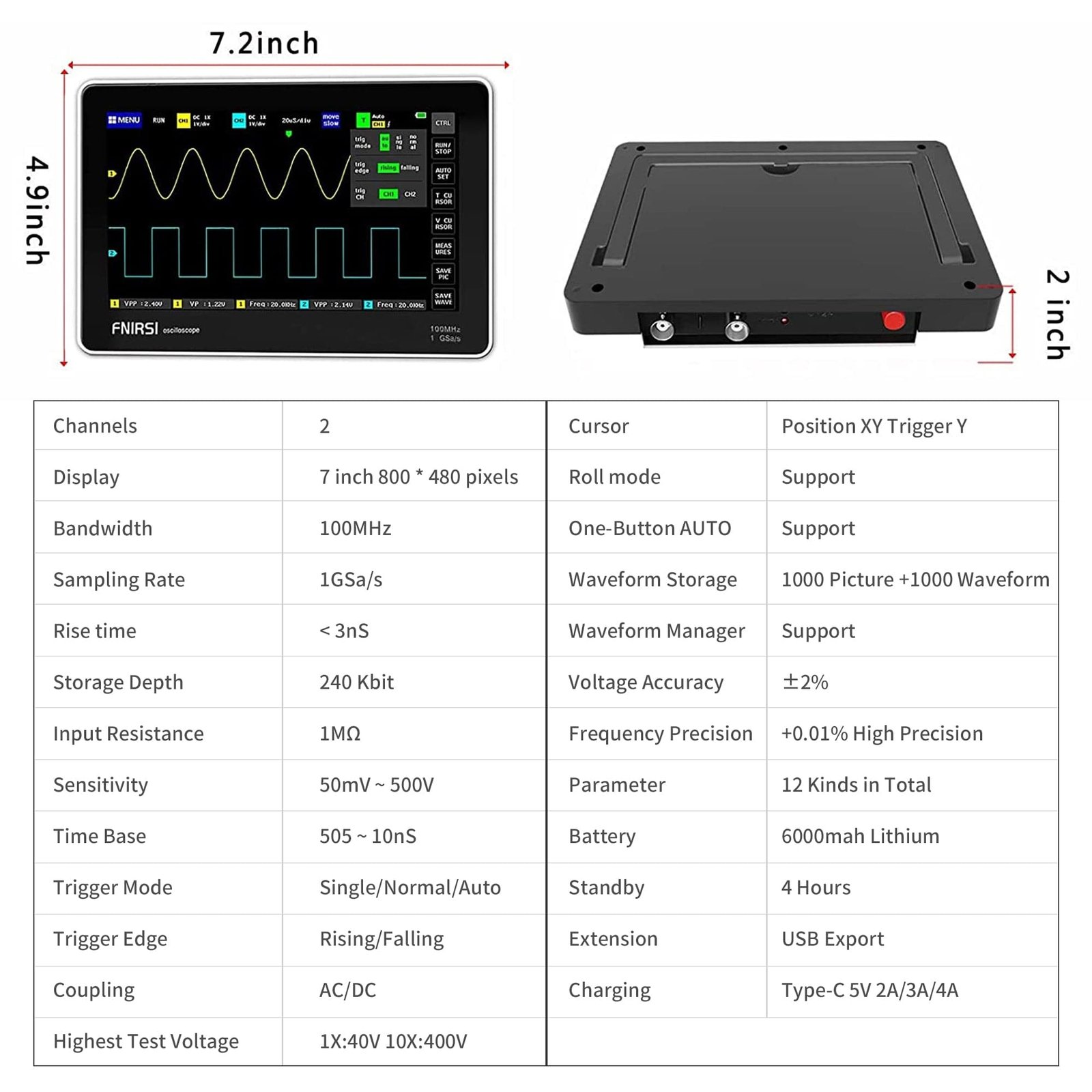

7 inch 800*480 Pixels
Bandwidth
100MHz
Sampling Rate
1GSa/s
Rise Time
<3nS
Storage Depth
240 Kbit
Timebase
50S~10ns
Vertical Sensitivity
50mV-500V
Input Resistance
1MΩ
Trigger Mode
Single / Normal / Auto
Trigger Edge
Rising / Falling
Coupling
AC/DC
Highest Test Voltage
1X:40V 10X:400V
Cursor
Position XY / Trigger Y
Roll Mode
Support
One-Button AUTO
Support
Waveform Manager
Support (1000 Pic + 1000 Waveform)
Voltage Accuracy
±2%
Frequency Precision
±0.01% High Precision
Parameter
12 Kinds in Total
Power Supply
6000mah Lithium Battery
Standby
4 Hours
Extension
USB Export
Charging
Type-C 5V 2A/3A/4A
