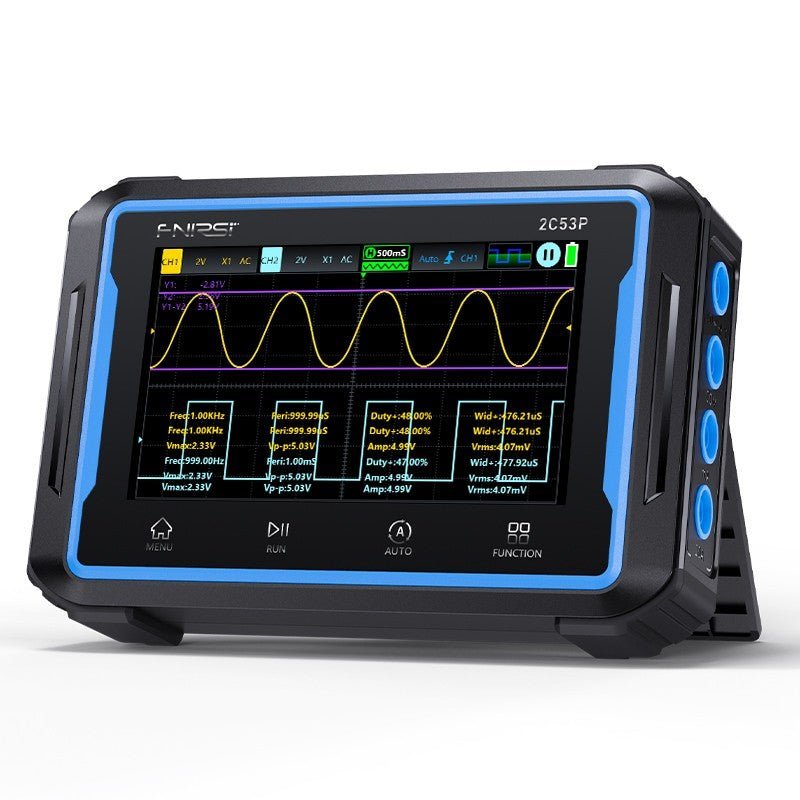

FNIRSI 2C53P is a dual-channel digital oscilloscope with comprehensive functions and high practicality. This device has 3 major functions:
1. The oscilloscope adopts FPGA+MCU+ADC hardware architecture, has a sampling rate of 250MS/s, an analog bandwidth of 50MHz, and supports a peak voltage measurement of ±400V; It supports waveform screenshots, saving, and viewing;

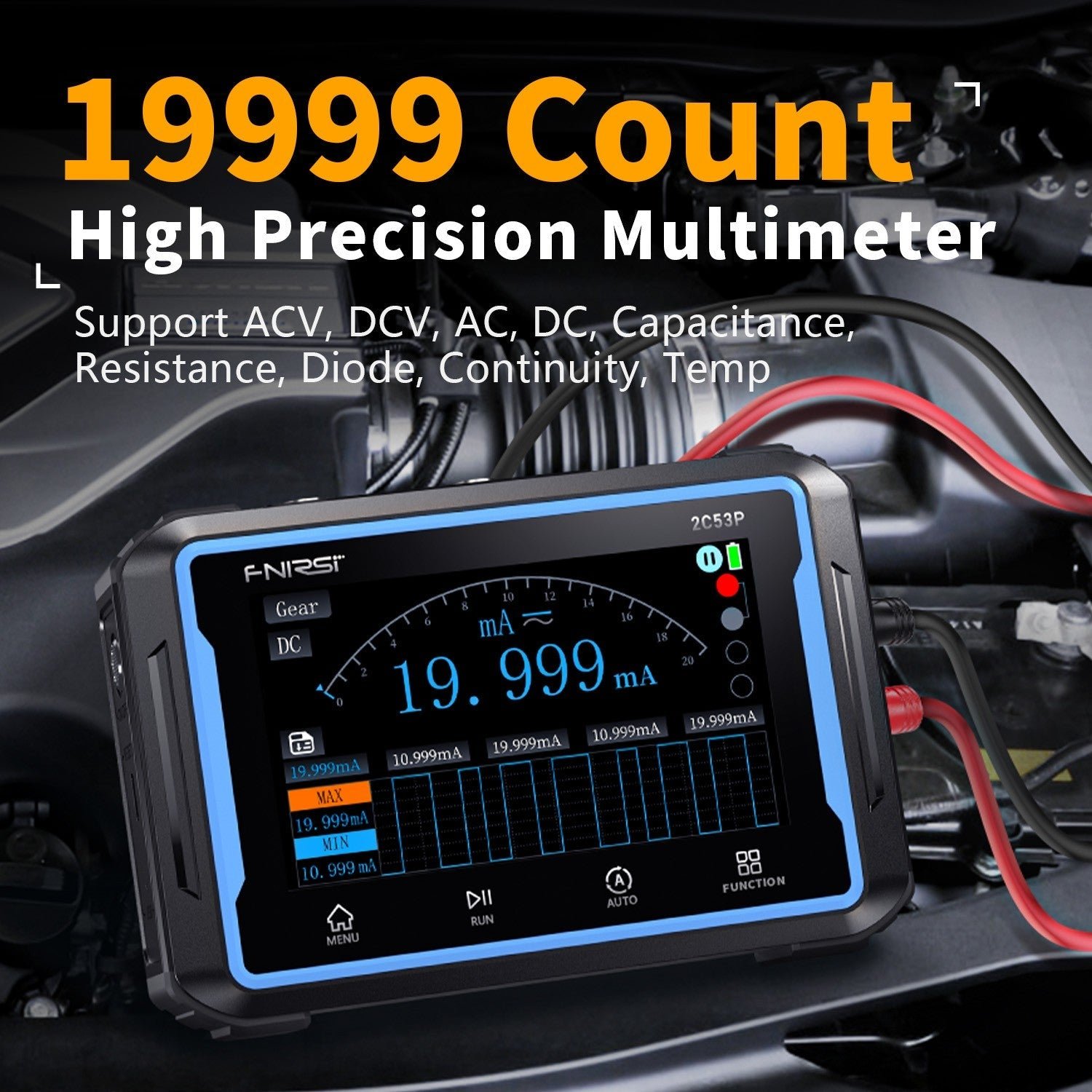

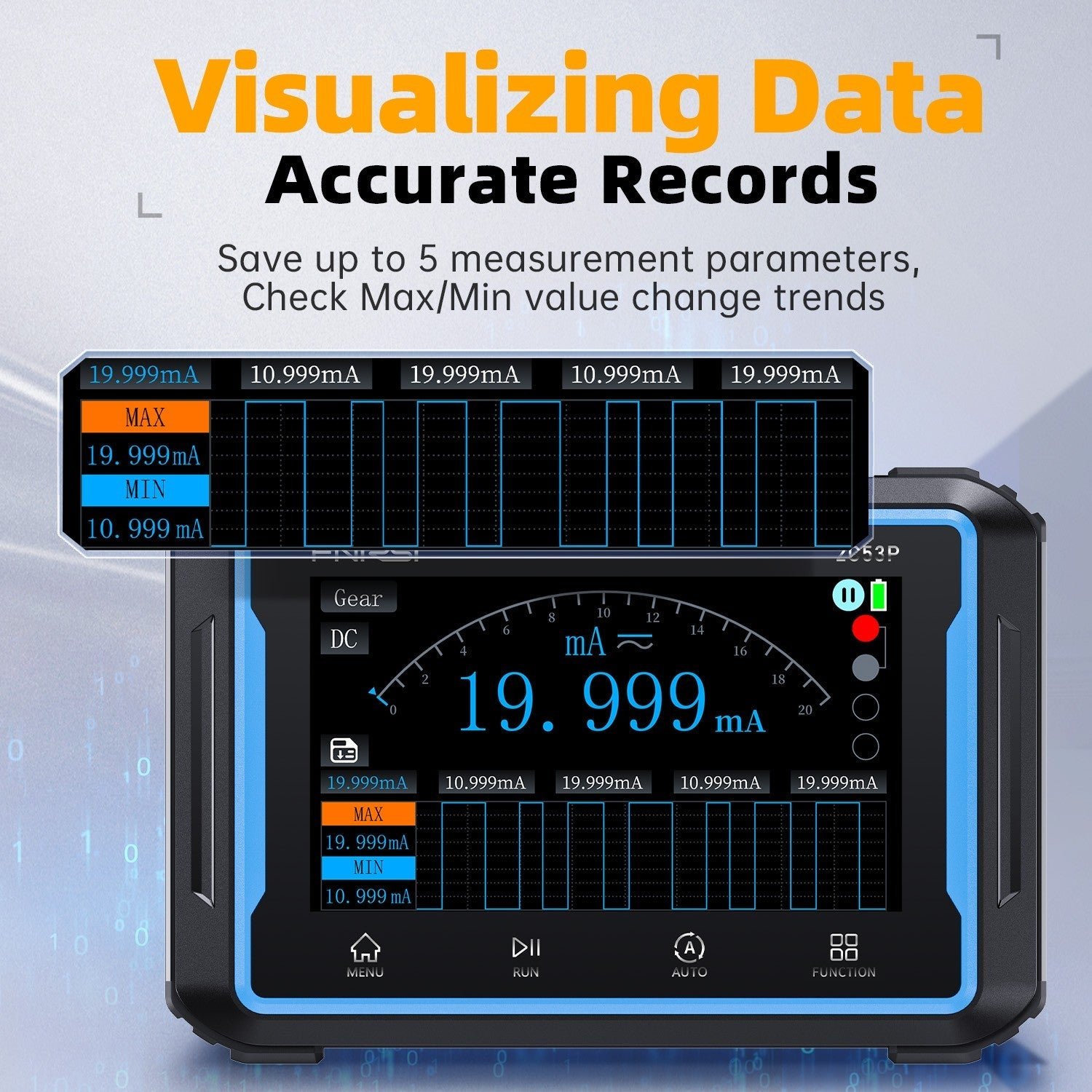

2. Built-in 4.5-digit 19999-point true RMS multimeter, supports AC and DC voltage and current measurements;
3. The built-in function signal generator can output 12 kinds of function signals, with a maximum output frequency of 10MHz, and the output frequency, amplitude, and duty cycle are adjustable.
It uses a 4.3-inch 480*272 resolution touch display and a built-in 4000mAh rechargeable lithium battery which makes standby time up to 4 hours.
It is an ideal multifunctional instrument for electronic maintenance personnel and electronic major students.
Basic Parameters
Screen Size & Resolution
4.3 Inch (480*272 pixels)
Screen Material
Surface tempered glass + touch screen made of glass + IPS color screen
Backlight
Backlight brightness can be set
Power Supply
TYPE-C (5V/2A)
Battery
4000mAh lithium battery
Language
Chinese, English, Pyccкий, にほんご, español, Português, Deutsch, 한국인
Product Size
≈145x98x35mm
Oscilloscope Parameters
Real-time Sample Rate
250MSa/s
Storage Depth
Up to 64kByte
Time Base Range
10ns/div – 10s/div
Vertical Sensitivity
10mv/div – 10v/div
Maximum Measured Voltage
±400V
Vertical Resolution
8 bits
Bandwidth Limit
Support 20MHz limit
Trigger Mode
AUTO / Normal / Single
Trigger Type
Rising / Falling edge
Trigger Level
8 div (positive/negative)
Waveform Display Mode

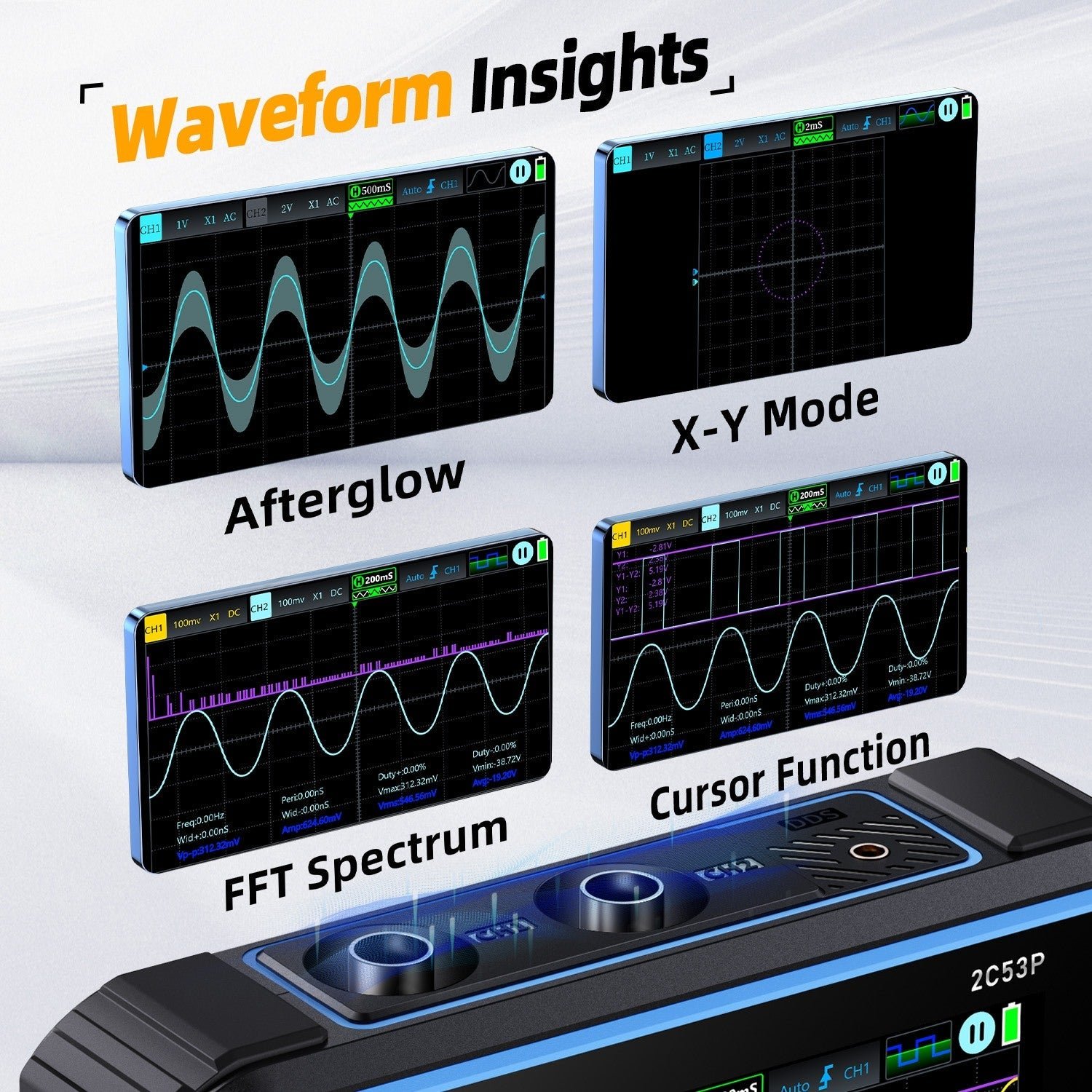

XY / YT / Scroll
Measured Data
Prd, Freq, Vpp, Vmax, Vmin, Vrms, Vavg, Vamp, Du+, Du-, Wid+, Wid-
Math Alculations
1+2, 1-2, 1*2, 1/2, -1, -2, |1|, |2|, FFT
Save Waveform Screenshot
Yes
USB Computer Transfer
Yes
Multimeter Parameters
DC Voltage
Range: 1.9999V / 19.999V / 199.99V / 1000.0V
Accuracy: ±(0.5%+3)
AC Voltage
Range: 1.9999V / 19.999V / 199.99V / 760.0V
Accuracy: ±(1%+3)
DC Current
Range: 19.999mA / 199.99mA / 1.9999A / 9.999A
Accuracy: ±(1.2%+3)
AC Current
Range: 19.999mA / 199.99mA / 1.9999A / 9.999A
Accuracy: ±(1.5%+3)
Resistance
① Range: 19.999MΩ / 1.9999MΩ / 199.99KΩ / 19.999KΩ
Accuracy: ±(1.5%+3)
② Range: 1.9999KΩ / 199.99Ω
Accuracy: ±(0.5%+3)
Capacitance
① Range: 999.9μF / 99.99μF / 9.999μF / 999.9nF / 99.99nF / 9.999nF
Accuracy: ±(2.0%+5)
② Range: 9.999mF / 99.99mF
Accuracy: ±(5.0%+20)
Temperature
Range: (-55~1300°C) / (-67~2372°F)
Accuracy: ±(2.5%+5)
Signal Generator Parameters
Frequency
0-10MHz (Sine wave: 10MHz, other waveforms 5MHz)
Square Wave Duty Cycle
0-100%
Signal Type
sinusoidal wave, square wave, sawtooth wave, half wave, full wave, positive step wave, negative step wave, DC signal, exponential rise, exponential fall, multi-audio, and sync pulse
