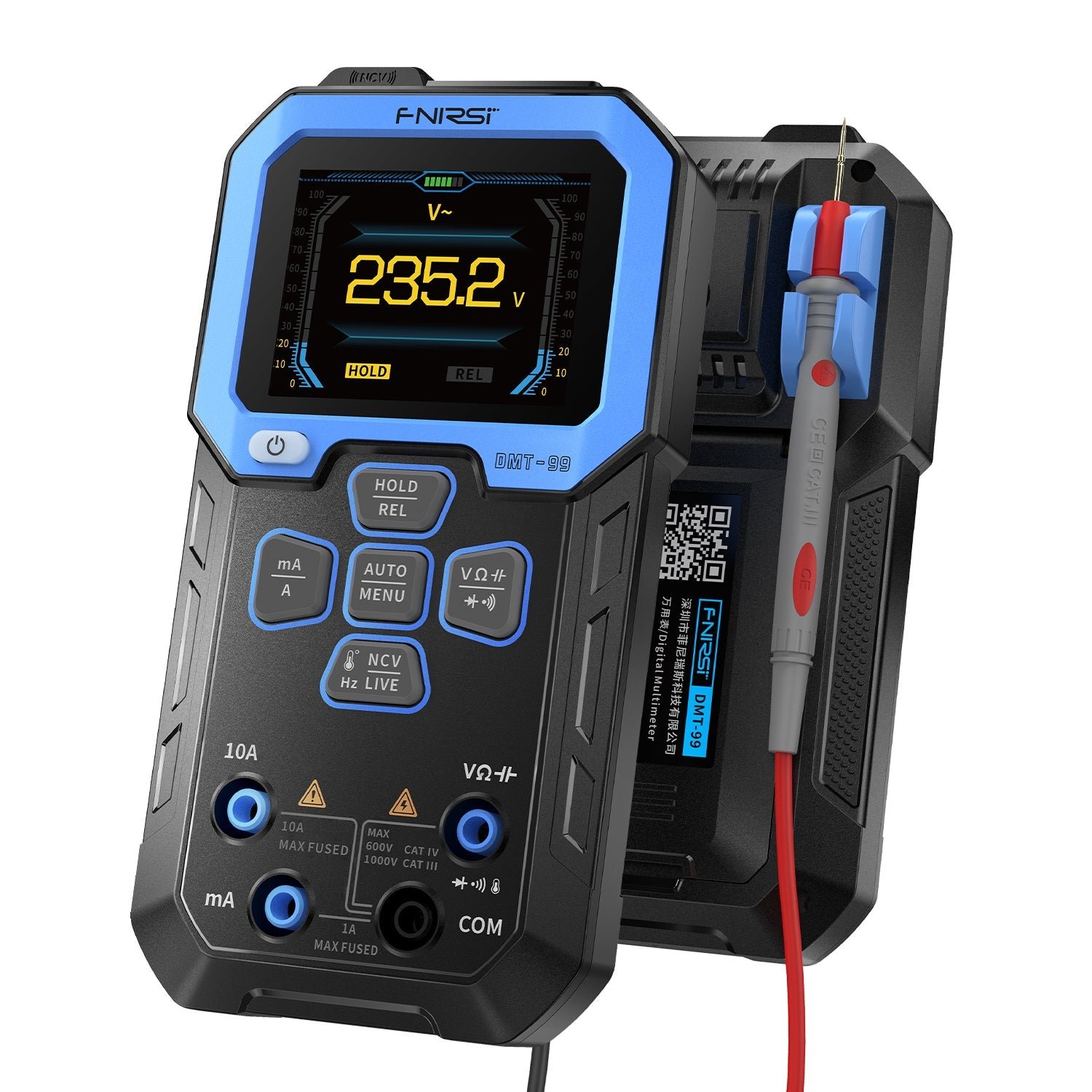

DMT-99 is FNIRSI’s newly launched 10000 count intelligent digital multimeter, with a wider measurement range and higher resolution, helping you measure more accurate values.
It can accurately measure AC/DC voltage, AC/DC current, 10A current, and can also be used to test conductivity, capacitance, frequency, duty cycle, resistance, diode, temperature, NCV, live wire, etc.
Suitable for various fields of electronic maintenance such as engineering, laboratories, cars, and home appliances. And it is equipped with a 2.4 inch full color TFT display,screen with a resolution of up to 240 * 320, Support DIY boot interface.
A new UI interface design, and the first monitoring mode function, enriching your use experience and making operation more convenient in various scenarios.
Features
- Professional digital multimeter multitester
- Automotive Multimeter: 1000V 10A True RMS
- 2.4 inch full-color TFT display (240 * 320 resolution screen)
- 3 measurement modes( recording, normal, and monitoring)
- Intelligent anti-burning digital multimeter
- Multimeter Use: tests conductivity, capacitance, frequency, duty cycle, resistance, diode, temperature, NCV, live wire, etc.
- Measures AC/DC voltage, AC/DC current, and 10A current.
- Built-in 1500mAh rechargeable battery multimeter tester

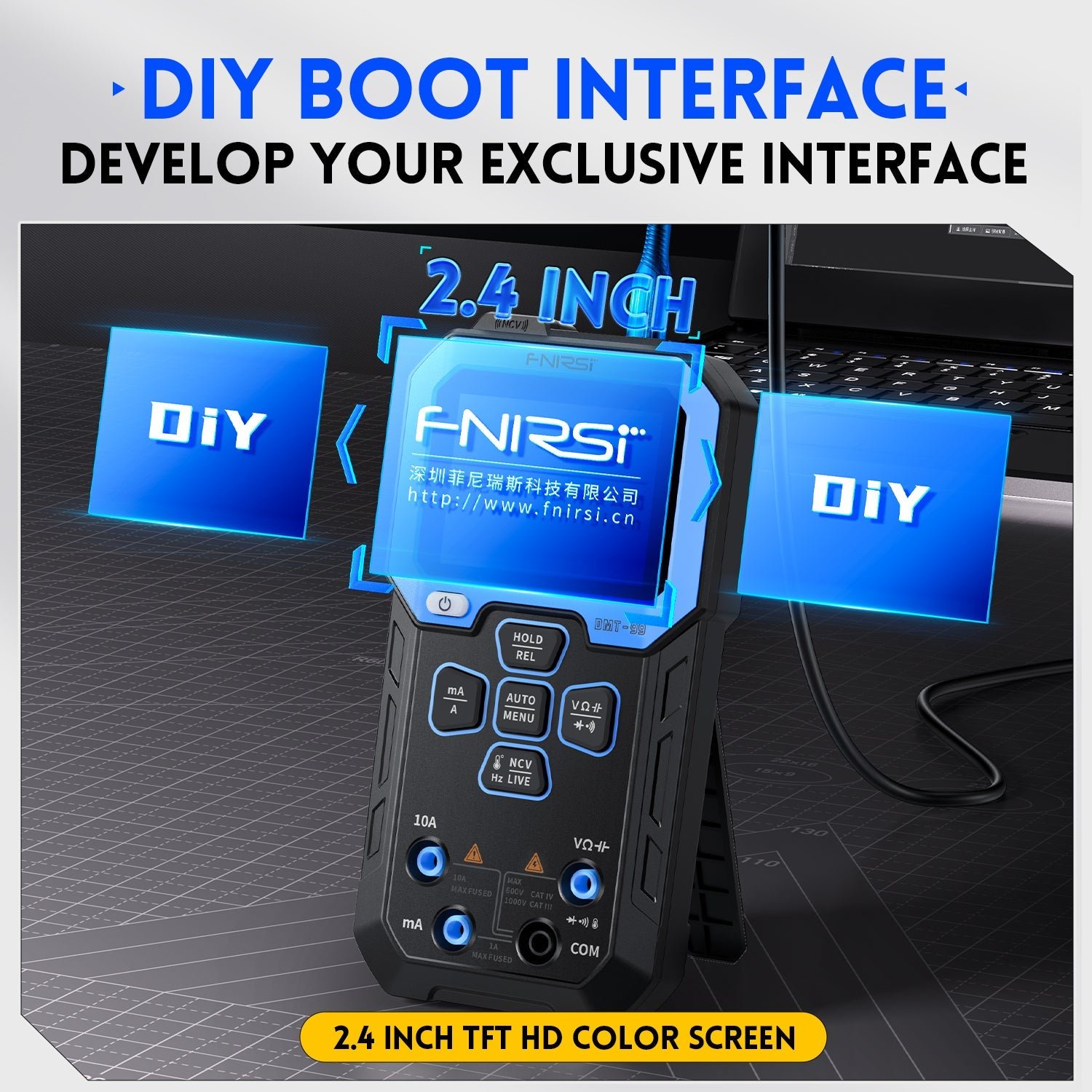

- Supports DIY startup interface
Specifications
Brand
FNIRSI
Model
DMT-99
Certification
CE
Display
2.4 Inches full color TFT display
Resolution: 240*320
Resolution: 240*320
Weight
185g
Battery Capacity
1500mAh
DC Voltage
9.999V-999.9V
AC Voltage
9.999V-750.0V
DC Current
9999uA-9.999A
AC Current
9999uA-9.999A
Measuring Resistance Range
999.9Ω-99.99MΩ
Measuring Capacitance Range
9.999nF-99.99mF
Frequency
9.999Hz-9.999MHz
Temperature
(-55~1300℃) / (-67~2372℉)
Diode
Yes
Continuity Test
Yes
NVC
Yes
LIVE
Yes
Operating Conditions
Temperature: 0-40℃
Humidity: <75%
Humidity: <75%
Storage Conditions
Temperature: -20-60’C
Humidity: <80%
Humidity: <80%
Item Weight
6.72 ounces
Item dimensions L x W x H
6.01 x 3.15 x 1.52 inches
