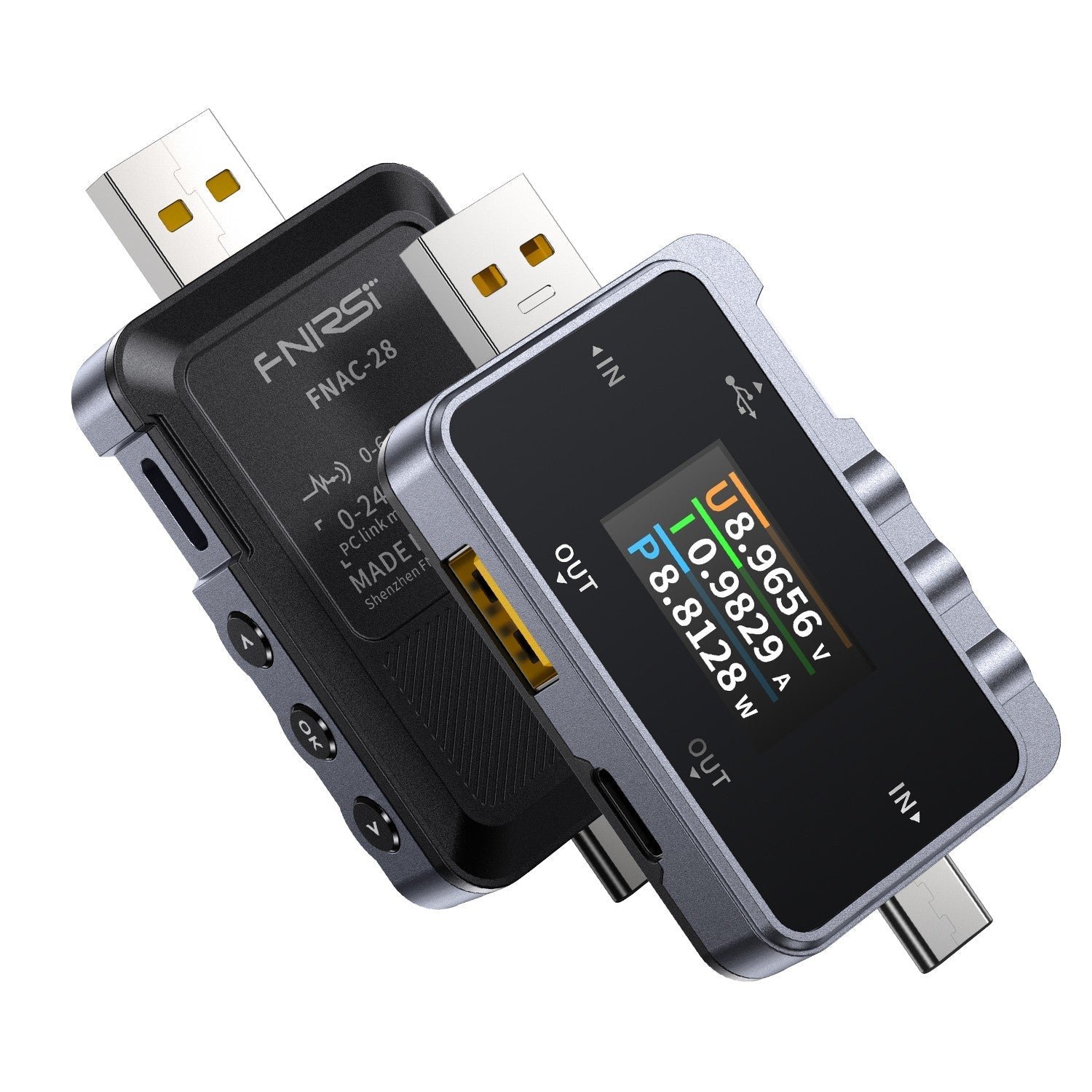

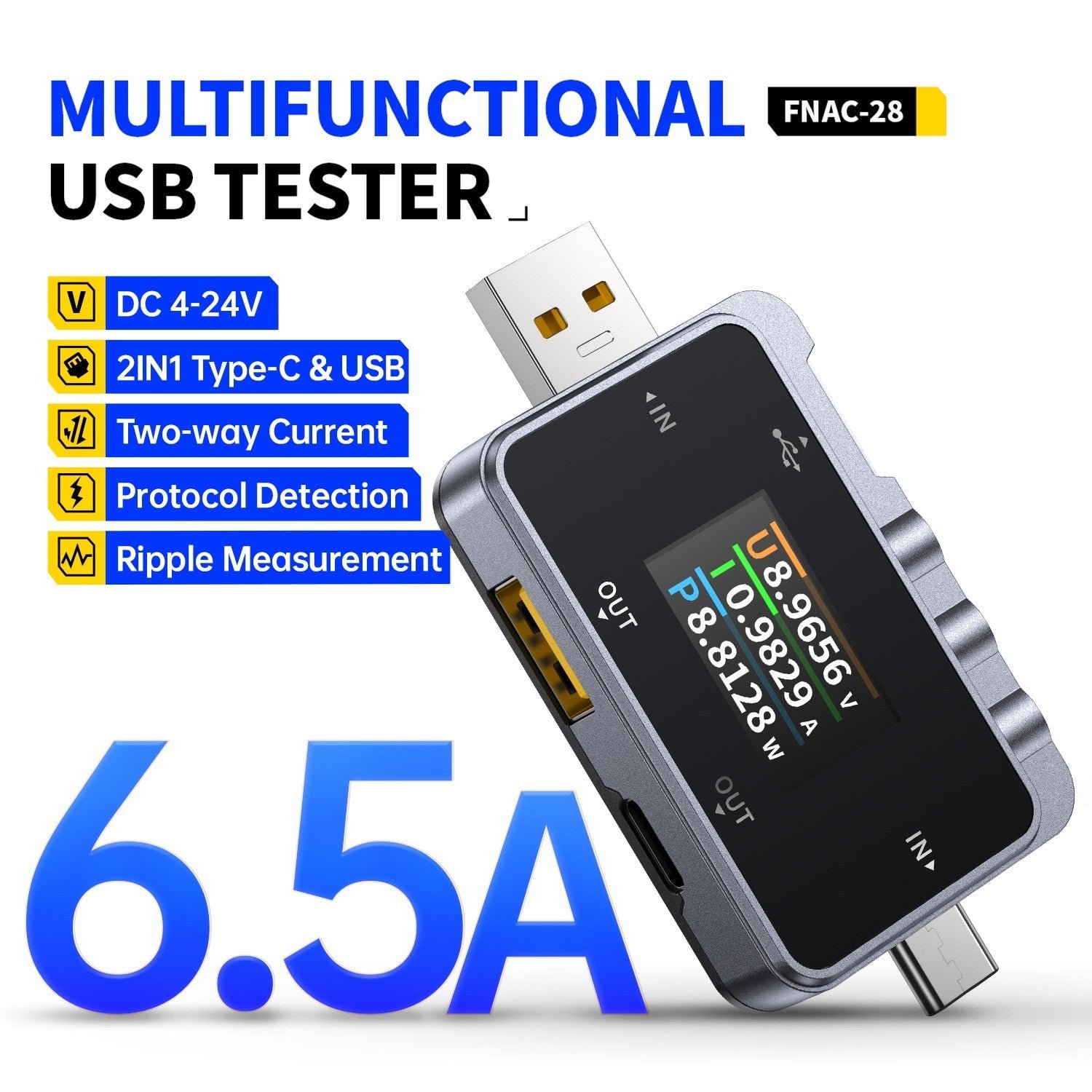

The FNAC-28 USB Tester is a multifunctional USB voltage and current meter, as well as a quick charge trigger device for mobile communication terminals.
Features
- It features a full-color, ultra-wide viewing angle TFT LCD display and integrates multiple interfaces, including USB-A and Type-C male and female connectors, ensuring broad compatibility.
- Utilizing an external 16-bit ADC chip, it offers high measurement accuracy.
- This device can measure the power supply or consumption of USB interfaces, phone chargers, USB drives, and other products.
- It can also measure phone charging power, and the input and output conditions of power banks, and perform quick charge protocol testing for chargers.
Specifications
Brand
FNIRSI
Model
FNAC-28
Screen
1.06 inch color screen
Monitored Voltage
4~24V
Monitored Current
0~6.5A
Monitored Power
0~156W
Protocol Detection
① QC2.0: 5V/9V/12V/20V
② QC3.0: 3.4-20V
③ FCP: 9V/12V/20V
④ SCP: 5.5-6.0V
⑤ AFC: 9V/12V
⑥VOOC/WARP: 20V
⑦ SVOOC 1.0: Support
⑧ SVOOC 2.0: Support
② QC3.0: 3.4-20V
③ FCP: 9V/12V/20V
④ SCP: 5.5-6.0V
⑤ AFC: 9V/12V
⑥VOOC/WARP: 20V
⑦ SVOOC 1.0: Support
⑧ SVOOC 2.0: Support
Cable Resistance
Support
Detect DASH Cable
Support
Soft DASH Cable
Support
Soft APPLE 2.4A
Support
Brightness Adjustment
Support
Standby Time Setting
Support
Temperature symbol
℃ and ℉ switch
Language
Chinese and English
Firmware Upgrade
Support
Dimensions
73×36×12mm
Weight
21g
